Product Summary
The PI3HDMI1212-ABEX is a High-performance HDMI 1.1 and 1.2 Compatible Signal Switch. The PI3HDMI1212-ABEX is a 2-to-1 HDMI Mux/DeMux Switch. The PI3HDMI1212-ABEX multiplexes differential signals to one of two corresponding HDMI inputs. The switch is bidirectional and offers little or no attenuation of the highspeed signals at the outputs. It is designed for low bit-to-bit skew and high channel-to-channel noise isolation. The maximum DVI/HDMI data rate of 4.0Gbps provides the resolution required by the next generation HDTV and PC graphics. Three differential channels are used for data (video signals for DVI or audio/video signals for HDMI), and one differential channel is used for Clock for decoding the TMDS signals at the outputs.
Parametrics
PI3HDMI1212-ABEX absolute maximum ratings: (1)Storage Temperature: －65℃ to +150℃; (2)DC Input Voltage for side band signals: -0.5V to 5.5V; (3)DC Output Current: 20mA; (4)Power Dissipation: 0.5W; (5)Supply Voltage VDD33: 3.0V to 3.6V; (6)Supply Voltage VDD50: 4.2V to 5.5V.
Features
PI3HDMI1212-ABEX features: (1)4-Differential Channel 2:1 Mux/DeMux + 4-Channel 2:1 Mux/DeMux; (2)DVI, HDMI 1.1, 1.2 and 1.3 signal compatible; (3)Data Rate: 4.0Gbps for high speed channels; (4)Supports both AC coupled and DC coupled signals; (5)Switching speed: 4ns; (6)Isolation: －40dB＠1GHz for high-speed channels; (7)Integrated ESD protection.

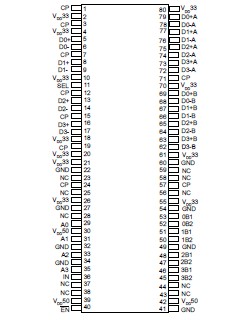

Diagrams
 |
